Good day,
I am rebuilding a 1952 M38 CDN and looking for the location of the drivers side fender Blackout light and horn.
I'm looking to see if anyone has an available diagram as my fender has most holes plugged and I'm struggling to locate the exact location.
Any info would be greatly appreciated thank You
Horn and Blackout Light Locations
-
PASA
- Member
- Posts: 8
- Joined: Wed May 17, 2023 6:00 pm
-
wesk
- Site Administrator
- Posts: 16445
- Joined: Sun Apr 03, 2005 6:00 pm
- Location: Wisconsin
- Contact:
Re: Horn and Blackout Light Locations

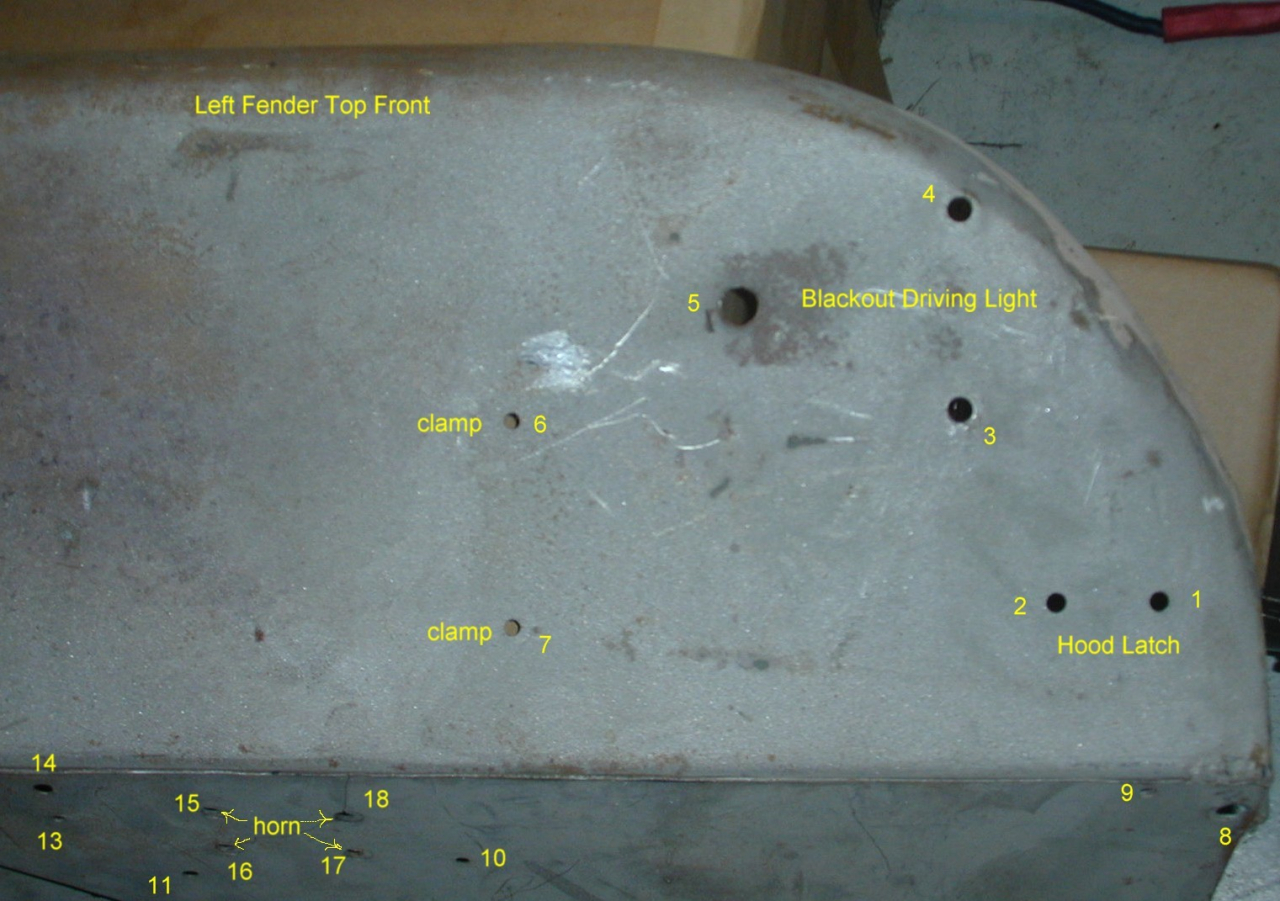

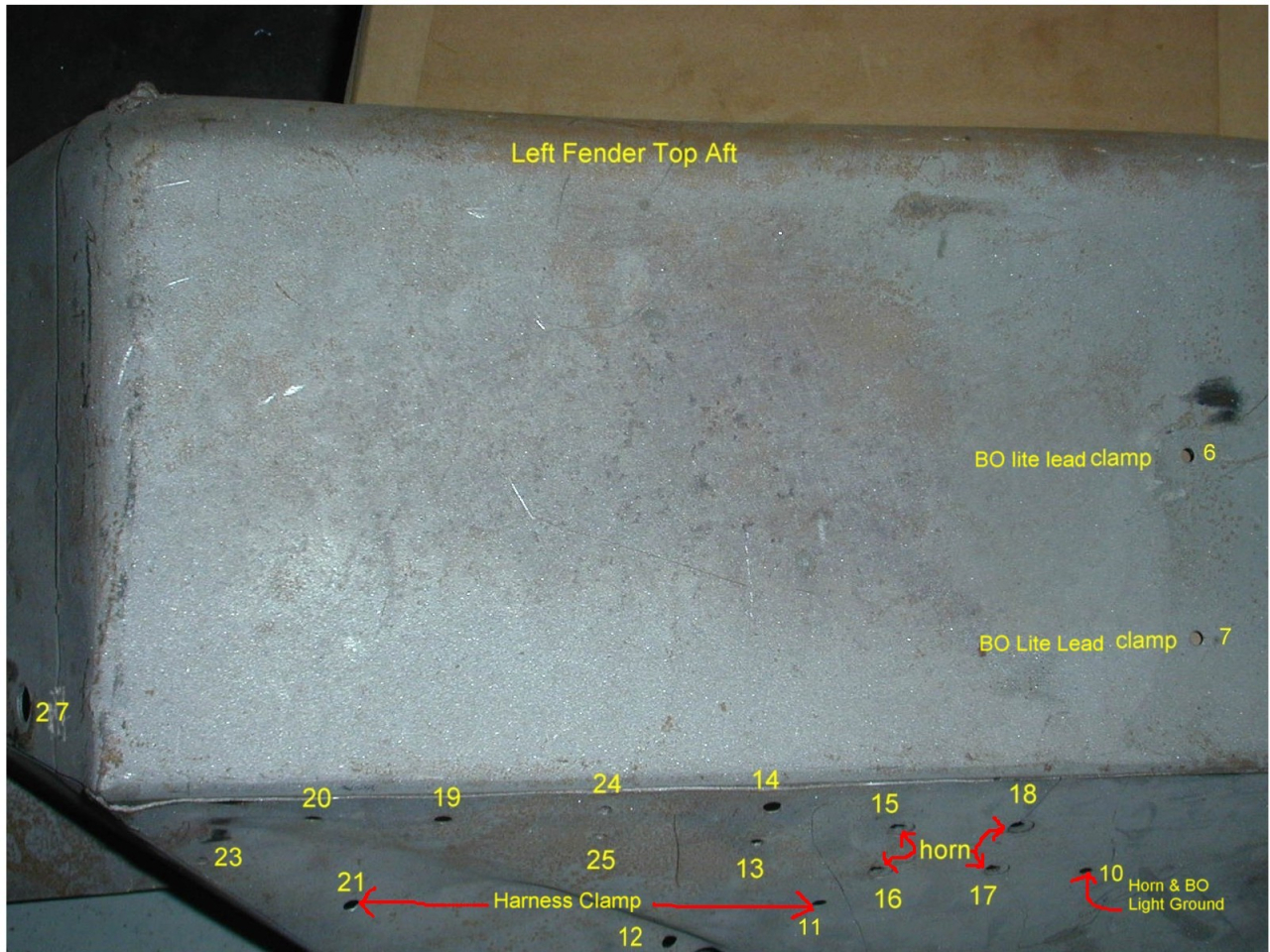

I don't have dimensions handy but these should still help. I can take some measurements tomorrow on my project.
Wes K
45 MB, 51 M38, 54 M37, 66 M101A1, 60 CJ5, 76 DJ5D, 47Bantam T3-C & 5? M100
Mjeeps photo album: http://www.willysmjeeps.com/v2/modules. ... _album.php
45 MB, 51 M38, 54 M37, 66 M101A1, 60 CJ5, 76 DJ5D, 47Bantam T3-C & 5? M100
Mjeeps photo album: http://www.willysmjeeps.com/v2/modules. ... _album.php
-
PASA
- Member
- Posts: 8
- Joined: Wed May 17, 2023 6:00 pm
Re: Horn and Blackout Light Locations
Thank you very much for the information, measurements would be greatly appreciated.
Paul
Paul
